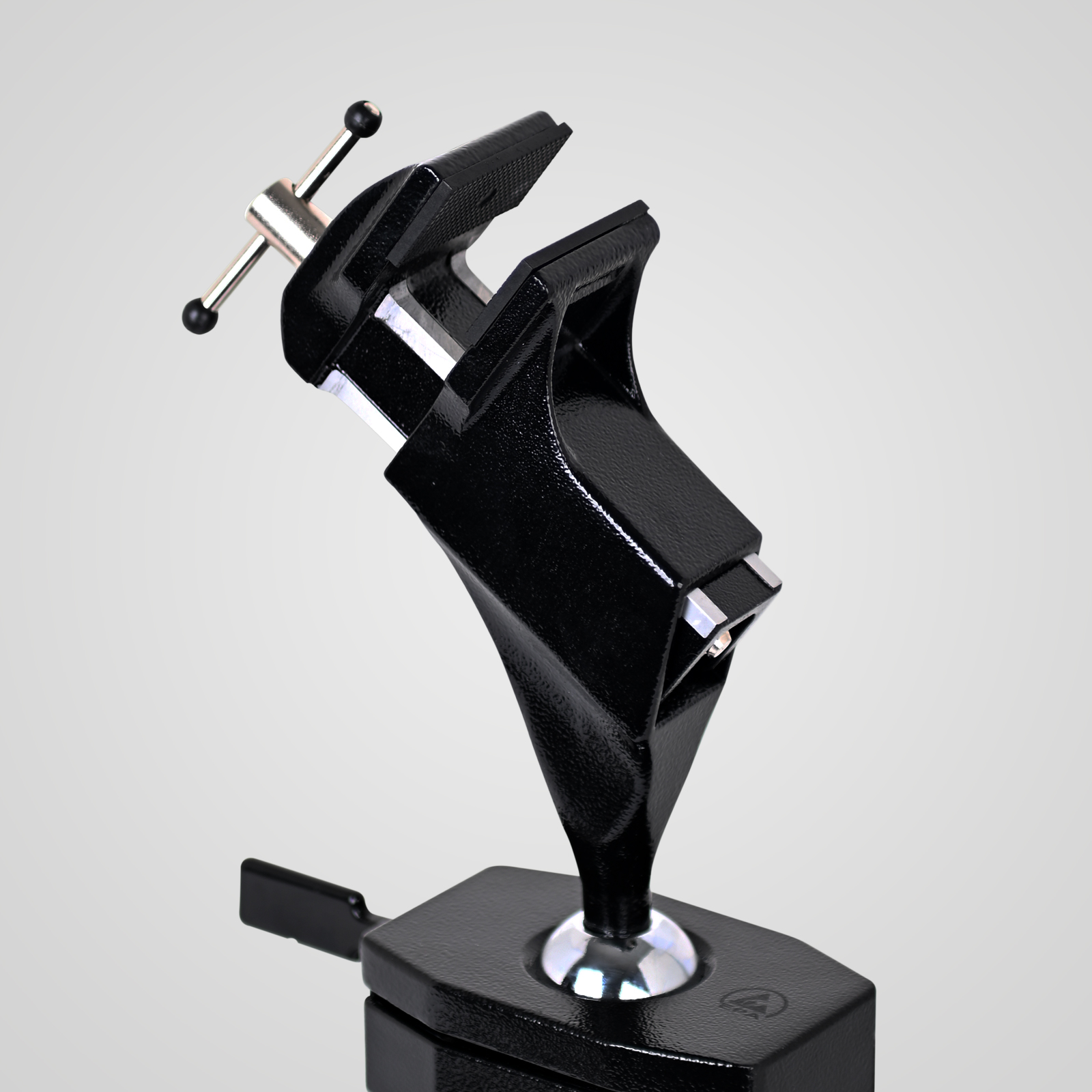

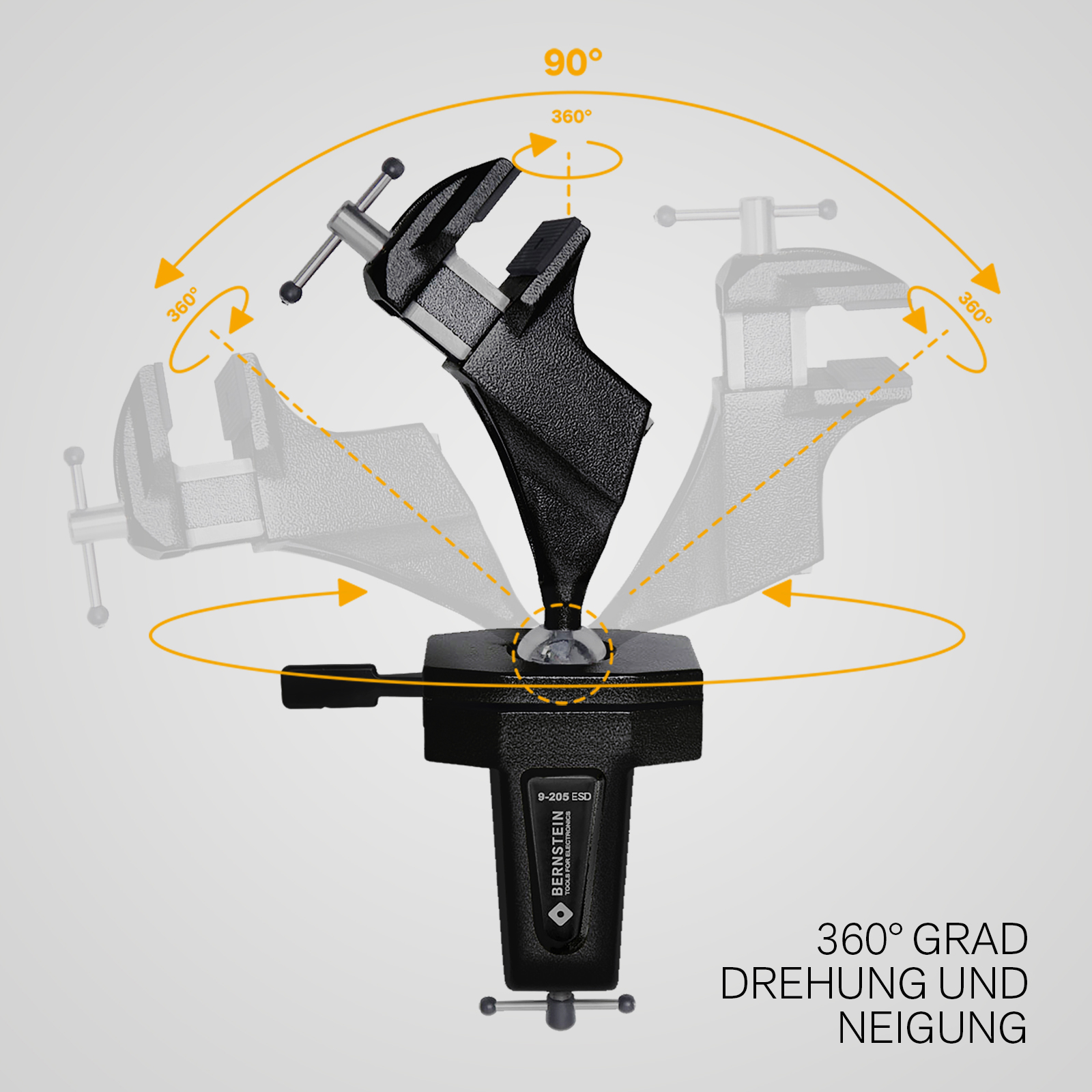

Precision ball joint rotatable 360°, steplessly lockable quick release, Quality product Made in Germany

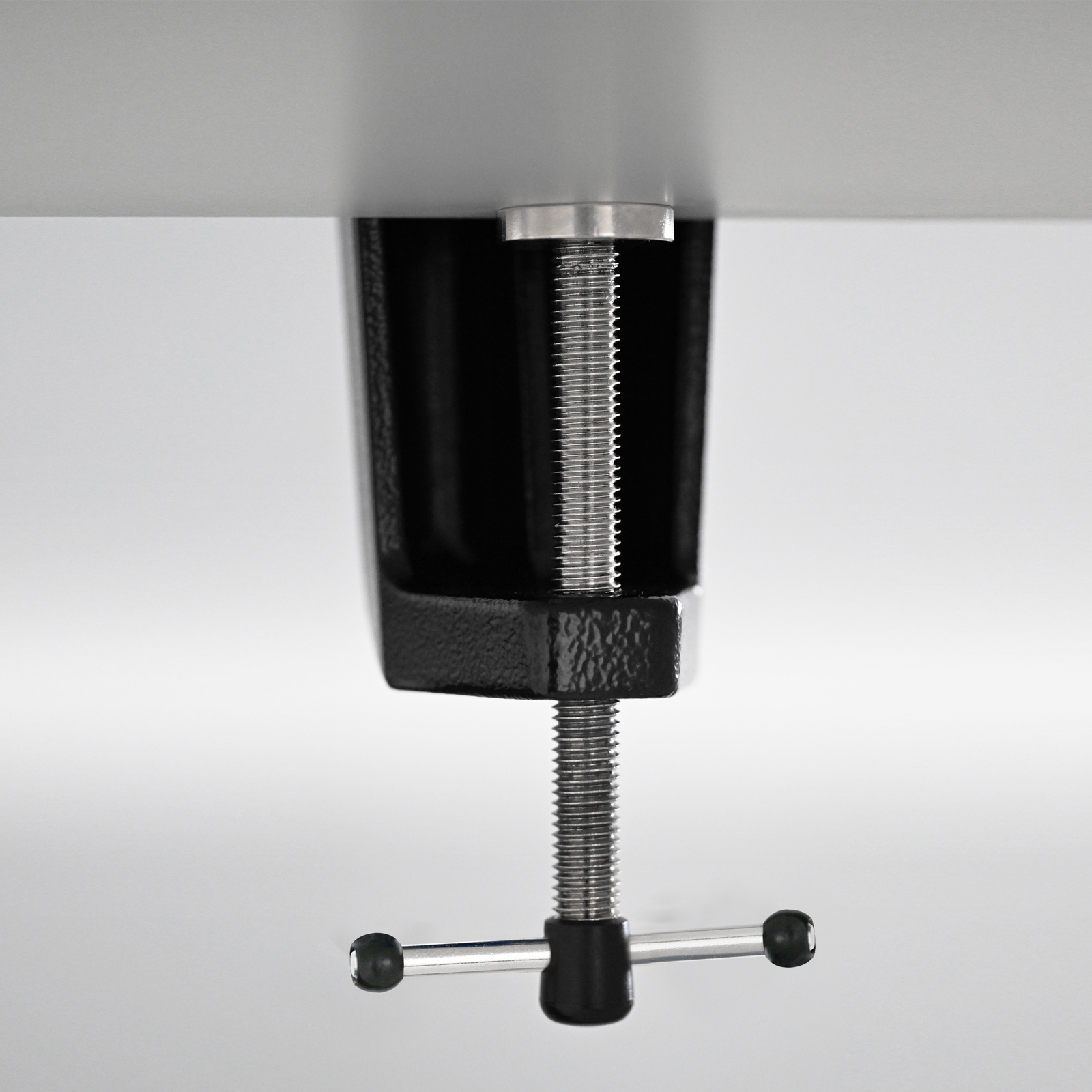

for clamping to the workbench (table thickness max 80mm)

50 mm ESD plastic jaws with grip

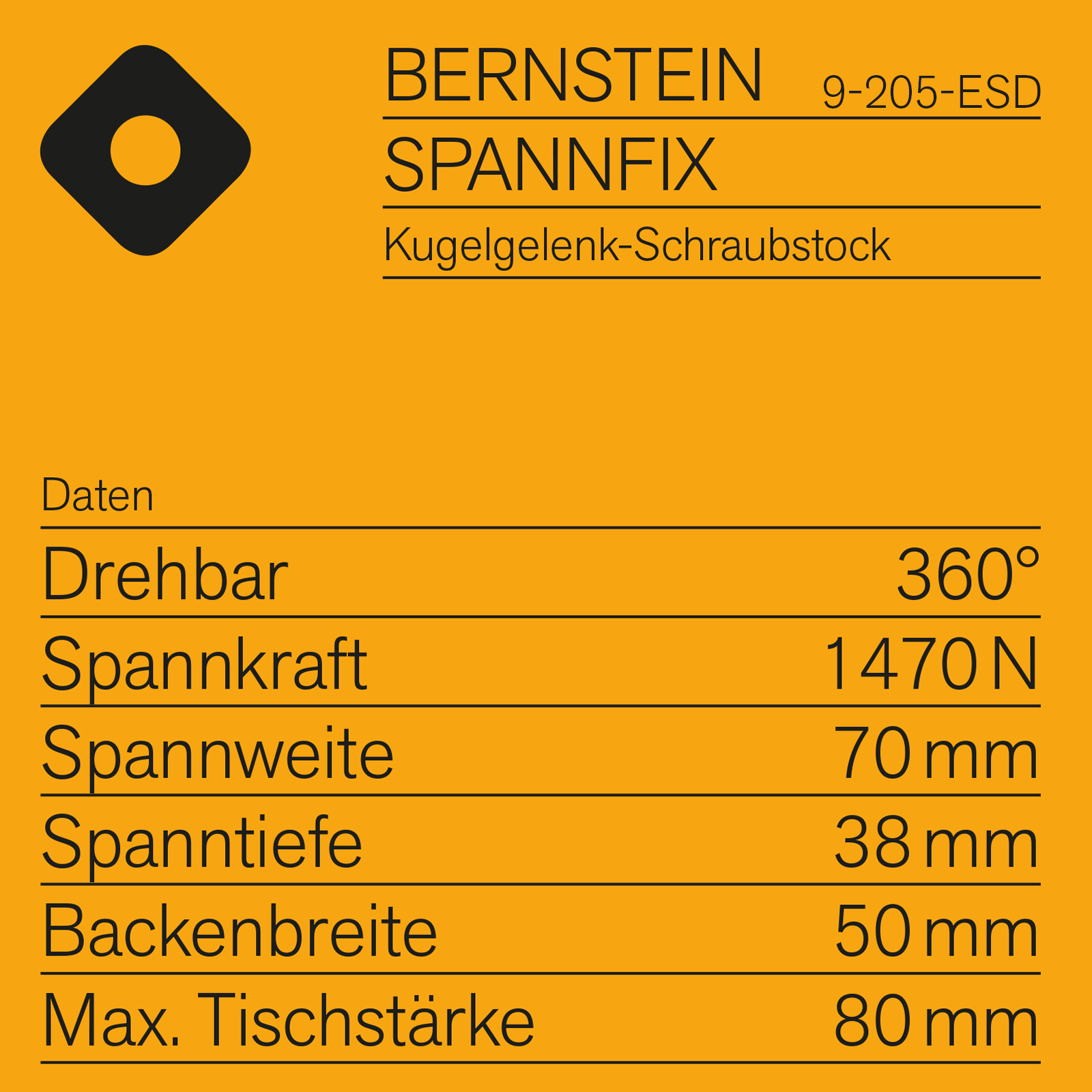

clamping width 70 mm, clamping depth 38 mm, clamping pressure 1470 N

inclination angle +/- 45°

spare parts: jaws , article 9-900-E50-ESD (pair)

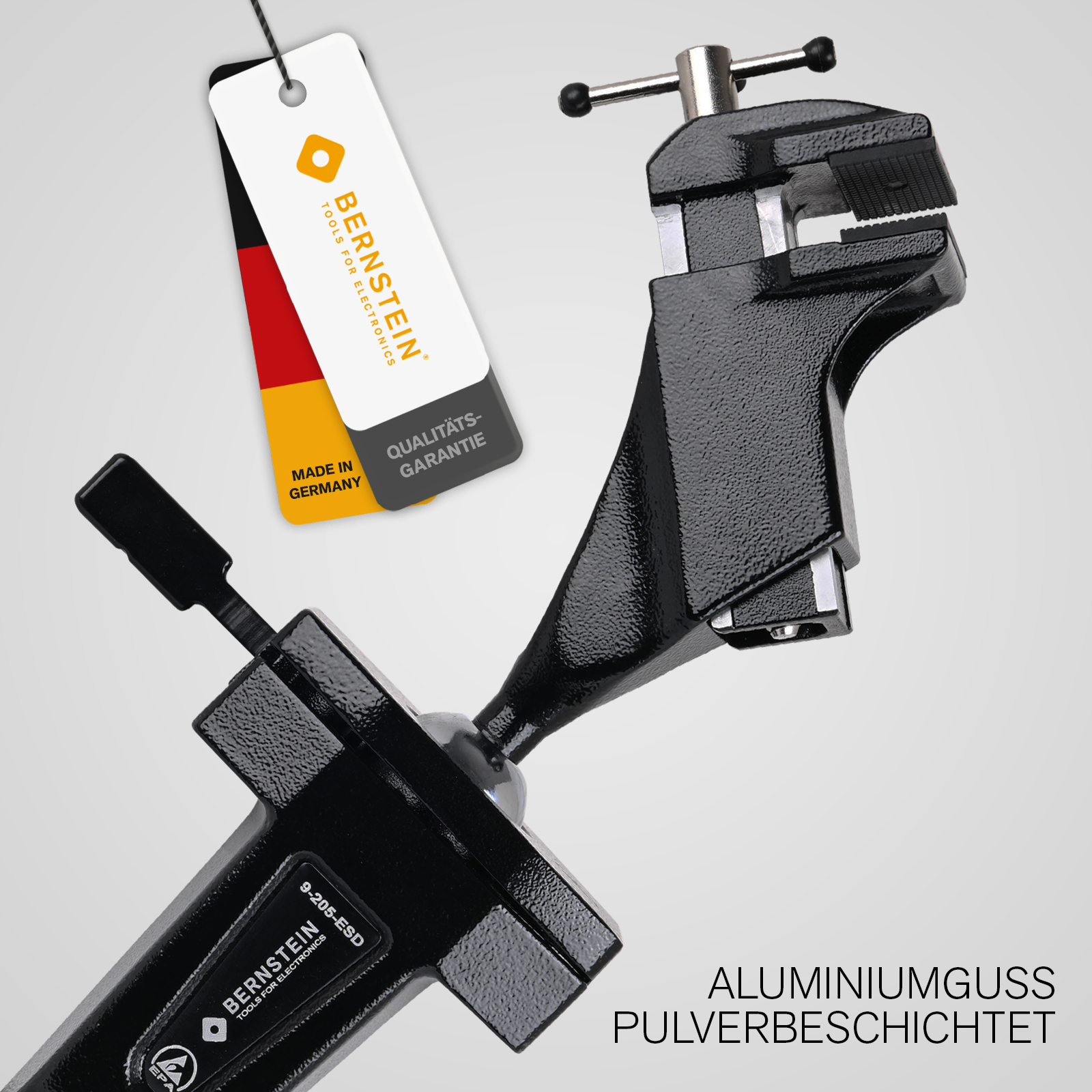

cast aluminum with black ESD powder coating, dissipative 10^7 to 10^8 ohm

Dimensions approx. 310 x 170 x 75 mm

weight 1550 g

A slight lever pressure is sufficient to align the clamped workpiece steplessly into any reasonable working position. The individual adjustment of the working height provides an ergonomic posture for working while standing (e.g. drilling, sawing, grinding, milling, cutting, etc.). The interchangeable jaws of the ball joint vices are 50 mm plastic jaws for the small vise and 100 mm steel jaws for the large vise. Protective jaws for clamping sensitive workpieces to avoid scratches we offer in felt, leather, cork and rubber coating. Vise jaws with prisms made of aluminum are suitable for clamping pipes, all vise jaws are available in jaw widths from 50 - 150 mm. The vice fastening for clamping is suitable for workbenches with a maximum table thickness of up to 80 mm. The screw-on vice fastening can be connected to workbenches, tables and base plates via the four 9 mm through holes. The high-performance magnets offer individual fastening that can also be changed quickly.

Maximum torque: ball Ø 40 mm approx. 24 Nm, ball Ø 60 mm approx. 100 Nm clamp-base: table top thickness max. 80 mm ESD versions dissipative 10^7 and 10^8 ohm EPA suitable for electrostatically protected areas (ESD workplace / ESD protection zone). The foot sections can be connected to the grounding point with a 10 mm push button. Cast aluminum parts powder coated Steel parts chrome-plated, rust-free With the adjusting screw on the lower seat of the ball, the movement of the ball can be adjusted from loose to very firm. For safety-relevant parts, please note that we cannot give a guarantee of the holding forces without knowing your specific application. The ball may behave differently under different physical conditions than it does in our test laboratory in an optimal test environment.

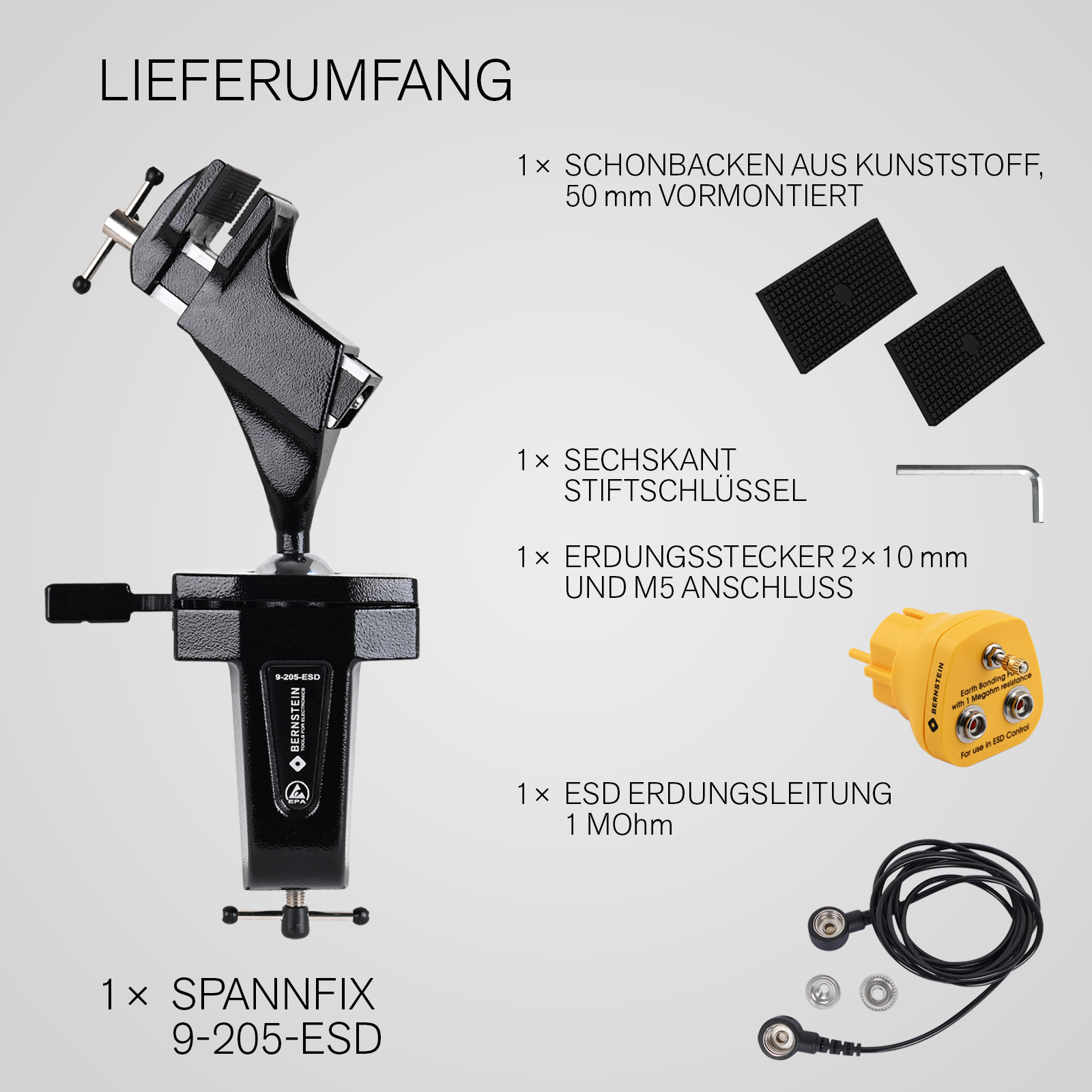

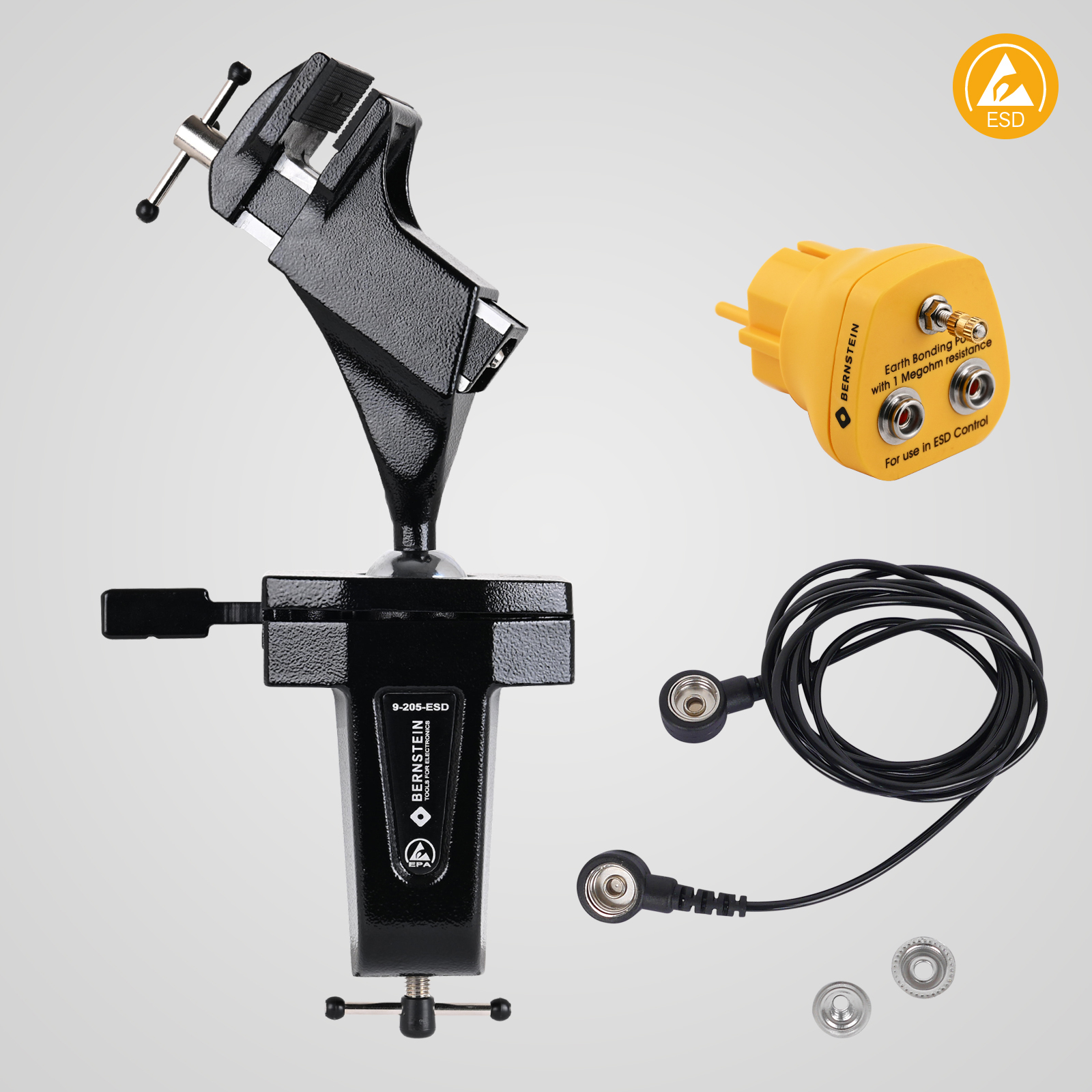

ESD handling set consists of: 9-205 ESD ball joint vice SPANNFIX for clamping, dissipative;9-359-2 ESD earth bonding plug 2x10 mm and M5 socket;9-343-1 ESD grounding cable 1 MOhm, 1800 mm 2 press-studs 10/10 mm

Marke: Bernstein Tools for Electronics

EAN: 4250838529747
