Accessories for torque adapters

high wear-resistant industrial bits

with color ring identifier

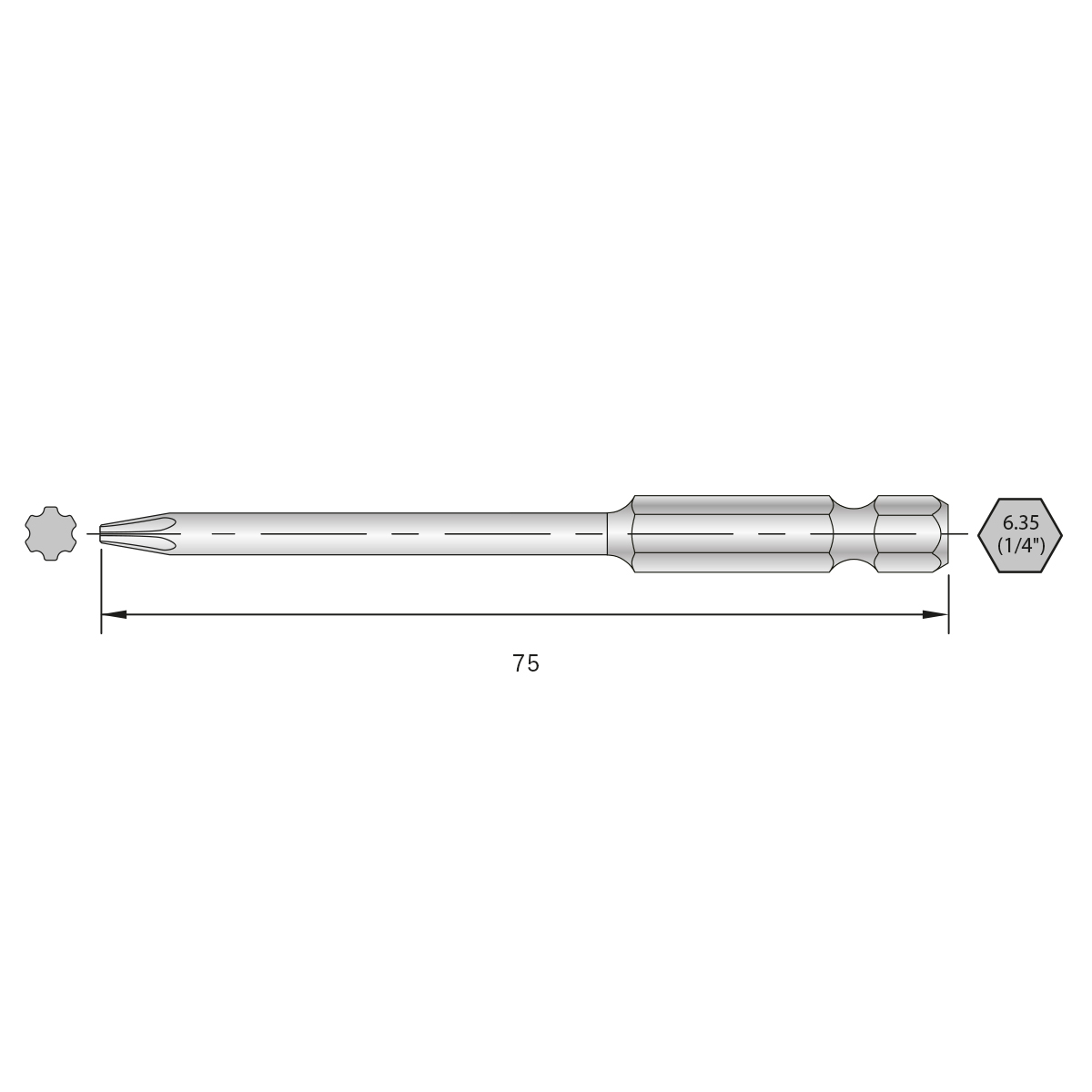

Bit length 75 mm

Shank 1/4 inch (6.35mm) E6.3

Material high alloy steel HRC 58-60

manufactured according to DIN3126

delivery in plastic bar

Content 6 pcs

Weight 78 g

Suitable bits for our torque adapters or bit holders. These TORX-PLUS bits with ¼ inch hexagon socket are for professional use.

Manufactured according to DIN 3126 from wear-resistant, high-alloy steel and have a hardness of 58-60 HRC. Packing unit 6 pieces of the same sizes in a bit bar. There are different bit lengths 25 mm, 50 mm and 75 mm, which should be reasonably selected depending on the application. The available sizes range from T6 to T25 and have different tightening torques (Nm), the max. torque varies depending on the screw material. The color ring identification on the bit simplifies the differentiation of different sizes at the workplace.##6IP (0.75-0.9 Nm, corresponds to screw size M2, M3), 7IP (1.4-1.7 Nm), 8IP (2.2-2.6 Nm, corresponds to screw size M2.5, M4), 9IP (2.8-3.4 Nm), 10IP (3.7-4. 5 Nm, corresponds to screw size M3, M5), 15IP (6.4-7.7 Nm, corresponds to screw size M3.5, M6), 20IP (10.5-12.7 Nm, corresponds to screw size M4), 25IP (15.9-19 Nm, corresponds to screw size M5, M8)

EAN: 4250838537421
